100mV/g Integrative Piezoelectric Vibration Speed Triaxial Transducer Vibration transmitter

Products Description

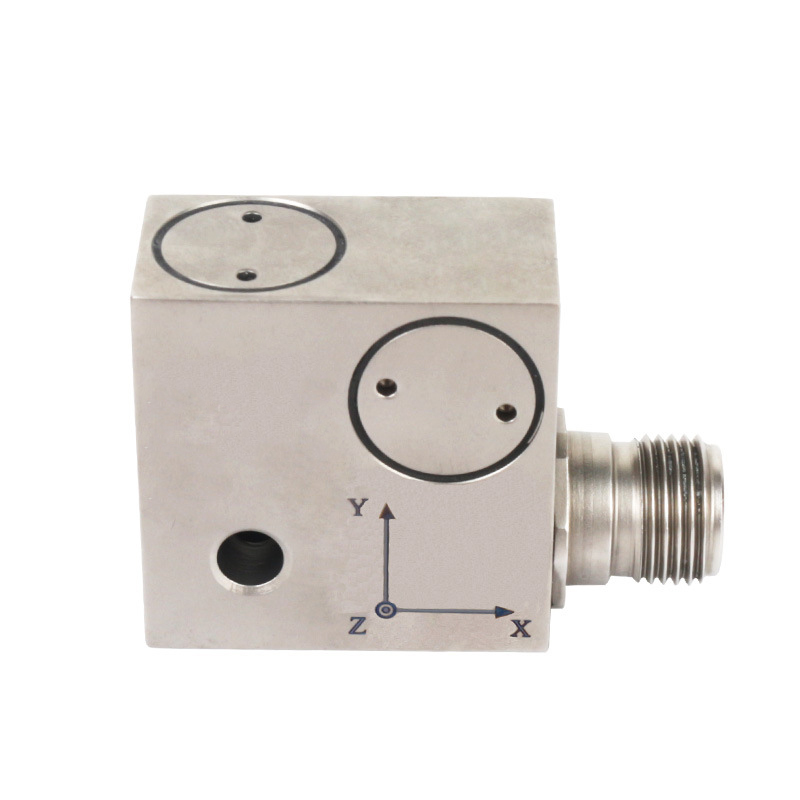

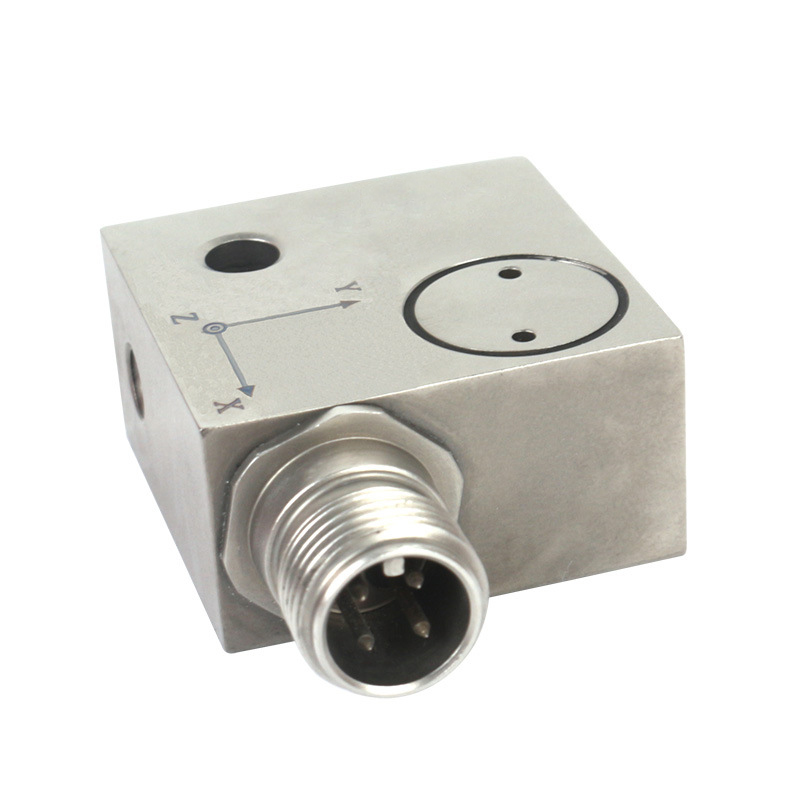

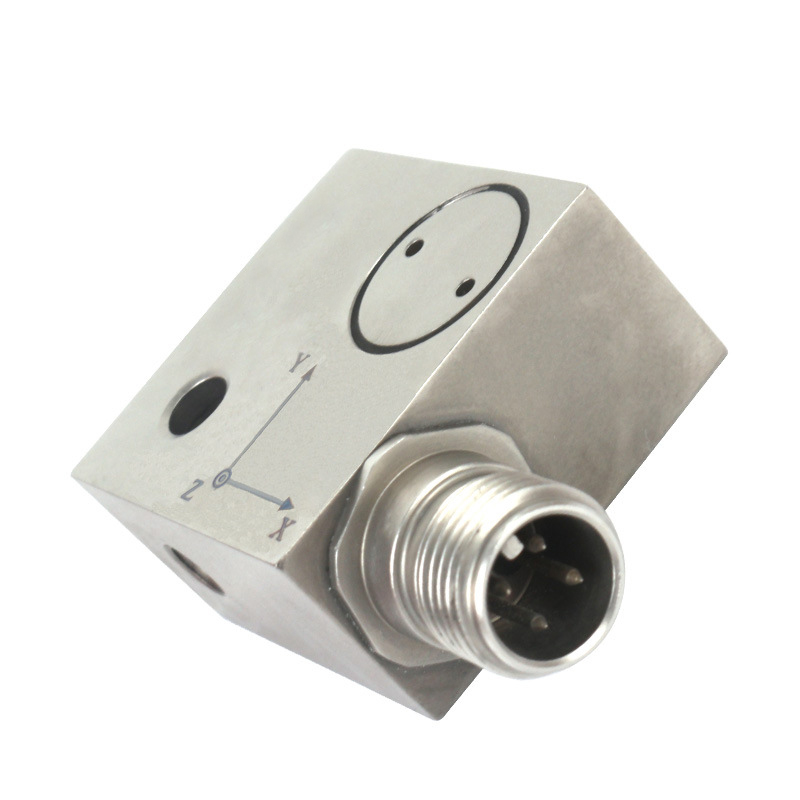

KH5004 3-axis: KH5004 accelerometer is designed with piezoelectric effect principle, 3-axis measurement, supports a variety of installation options, can provide high performance and excellent value, to meet diversified tests to the greatest extent. The product is embedded with a precision integrating circuit, which can measure the three directions of X, Y, and Z at the same time, and output 4-20mA or IEPE signal. Users can connect PLC/DCS or other monitoring equipment of collector, mainly used for vibration state monitoring of gears and bearings of industrial rotating machinery (motors, pumps, centrifuges, compressors, blowers, etc.), fault monitoring, engineering geology, geological monitoring , vibration of high-rise buildings and large structures, etc.

Products Details

Measuring range
Transverse sensitivity(25℃) ±5%
100 mV/g (160Hz)
Frequency response(±1dB)
Installed resonance frequency
Transverse sensitivity ratio
Excitation voltage
Constant current source excitation(mA)
Output impedance
<100 Ω
Full range output (peak)
Bias voltage
Working temperature
Shock limit (peak)
±1000 g
Temperature response
see attachment
Structure type
The shell material
304 stainless steel
Output method
1/4-28 four-core
Installation method
M5 glue
Piezoelectric material
Mounting bolts

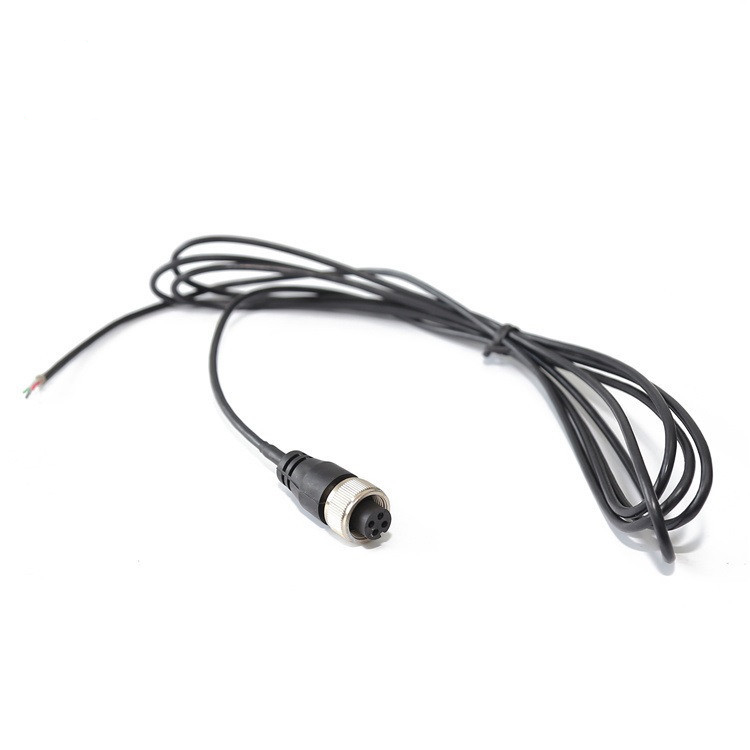

1/4-28Four-pin plug turn 3BNC Four-core shielded cable 2 meters
